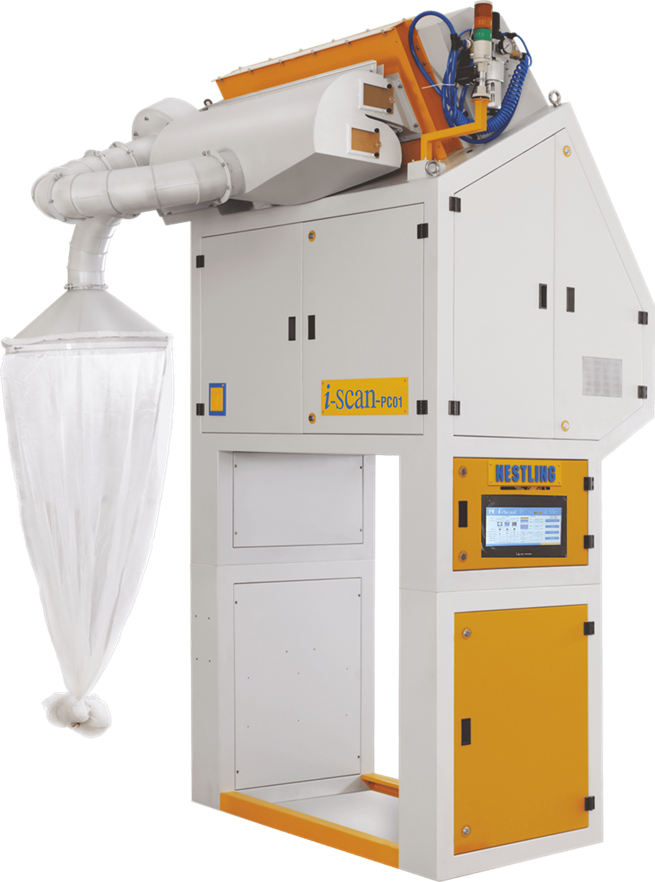

NEST i-Scan-PC01, Powered by NESTECH - A comprehensive solution developed with our core values which transforms the ordinary cotton into purified cotton at GINNING for Creating Elegance in Fabrics by Ensuring Dignity in Threads at spinning and post-spinning process
The NESTway Process….

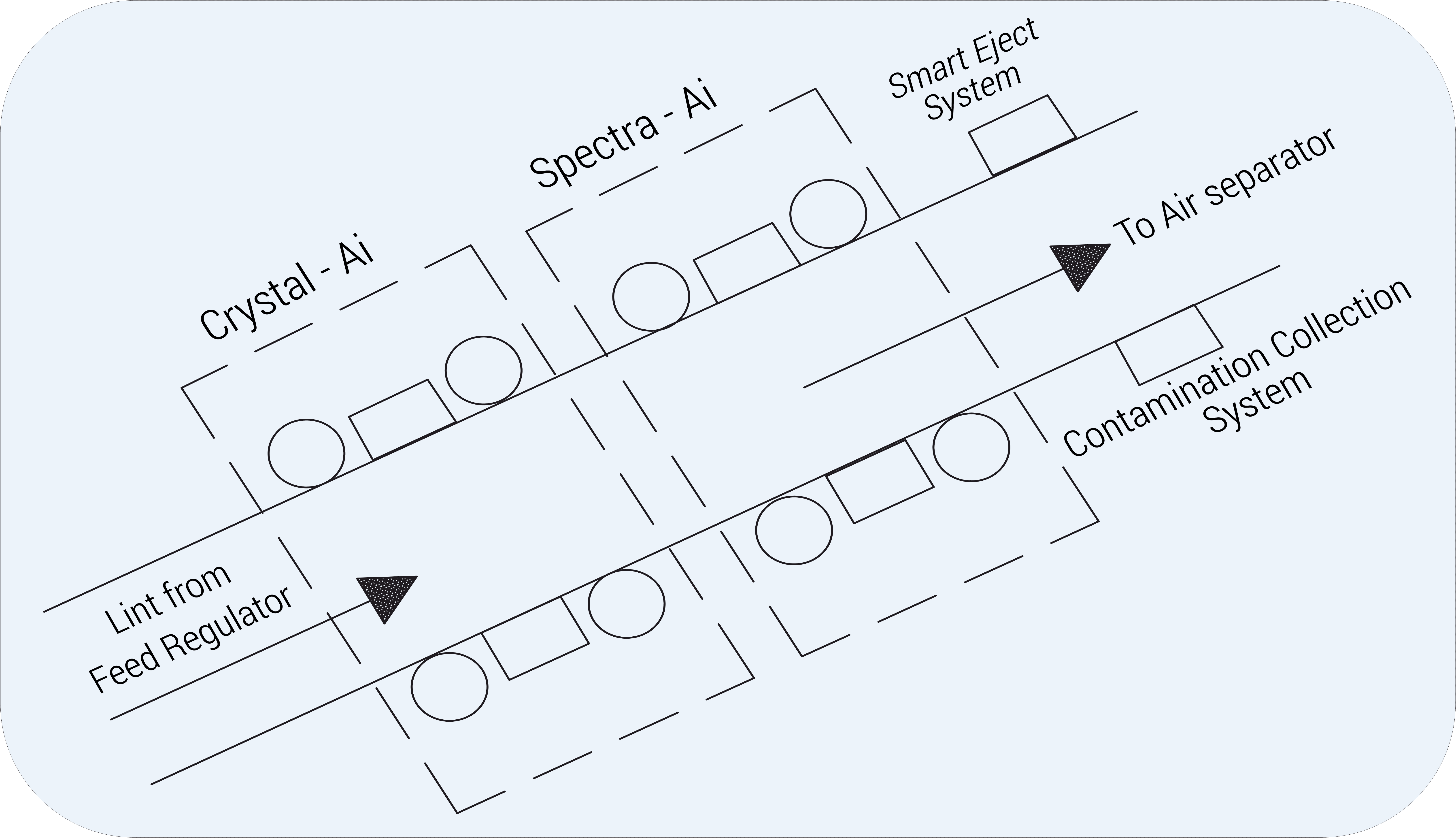

Schematic diagram for the Customized Solutions
- Highly contaminated lint from super/lint cleaner will be fed into the specially designed Feed Regulator.
- An innovative Inverter-driven Feed Regulator regulates the lint for better opening of fibres.
- Gently regulated fibres with contaminates pass-through high resolution scanning modules where the contaminations (color and white PP) will be Detected, Eliminated and collected separately
- Cleaned Lint are sucked through Air-Separator and fed into the conveyor/suction duct for further baling process.
- Micro-dust & trash are also removed and collected separately
The NESTway Technology…
NESTECH Spectra-Ai
- A unique spectrum technology is employed for very high identification and elimination of all ranges of colored contaminants (from light to dark shades)
- Spectra-Ai is Architectured with high resolution camera modules with Ai Algorithm for consistent elimination of contaminants irrespective of multiple variable factors
NESTECH Crystal-Ai
- A Specially designed VIBOR – Spectrum (Patent Pending) technology is employed for very high identification and elimination of all highly sensitive white polypropylene and synthetic contaminants.
- Crystal-Ai is Architectured with high resolution camera modules with Ai Algorithm for the sharper discrimination between cotton and white polypropylene contaminants for the effective and consistent elimination.
The NESTway Approach...
NESTECH customised solutions @ GINNING
- Providing customized solutions, through our diagnostic study approach for handling the production through put of 1500 to 4000 kgs (OR) 10 to 25 bales per hour.
- Facilitating the aspired Ginners to become a TMC (Technology Mission on Cotton) rated cotton bales suppliers. Facilitating the automation and technology up-grades for the entire Ginning process to become a most preferred cotton bales suppliers to premium quality driven spinners.
- Bridging between aspired Ginners and Spinners by Promoting Co-branding and marketing of NESTX Contamination Controlled Cotton at a Premium price.
- Effective after-sales service through our nation wide service network of talented engineers.
